Must Inverter Off Grid Solar Inverter PV1800 PREM Series 1.6-5.5KW

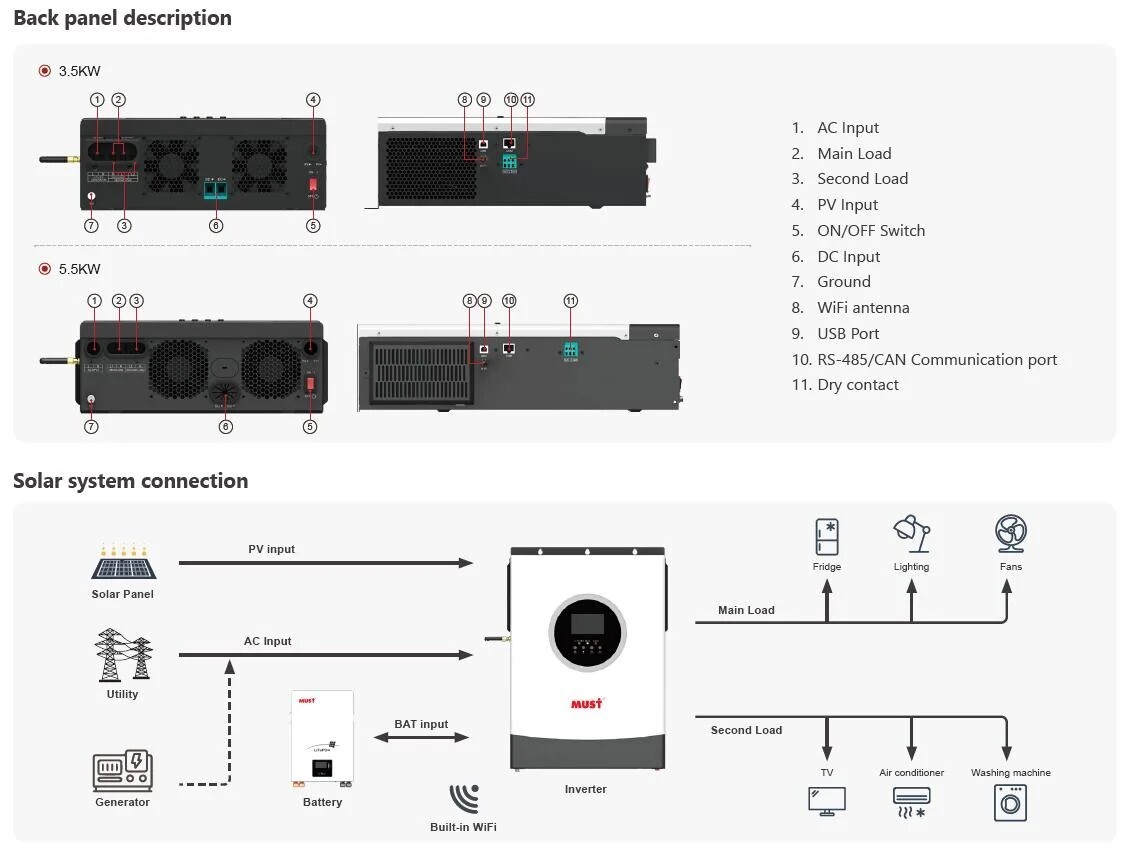

PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.
Message
| MODEL | PV18-1612 PREM | PV18-2524 PREM | PV18-3024 PREM | PV18-3524 PREM | PV18-5548 PREM |
| Nominal Battery System Voltage | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC |
| INVERTER OUTPUT | |||||
| Rated Power (Main+Second Load) | 2000VA/1600W | 2500VA/2500W | 3000VA/3000W | 3500VA/3500W | 5500VA/5500W |
| Surge Power | 3200W | 5000W | 6000W | 7000W | 11000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | ||||
| Inverter Efficiency(Peak) | 90~93% | ||||
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) | ||||
| AC INPUT | |||||
| Voltage | 230VAC±5% | ||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | ||||
| Frequency Range | 50Hz / 60Hz(Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC |
| Overcharge Protection | 15VDC | 30VDC | 30VDC | 30VDC | 60VDC |
| SOLAR CHARGER &AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 400VDC | 400VDC | 400VDC | 450VDC | 450VDC |
| Maximum PV Input Current | 16A | 18A | 18A | 18A | 28A |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | ||||
| Maximum PV Array Power | 2000W | 4000W | 4000W | 4000W | 6000W |
| PV Array MPPT Voltage Range(Typ.) | 30~320VDC | 60~360VDC | |||
| Maximum Solar Charge Current | 80A | 100A | |||
| Maximum AC Charge Current | 80A | 60A | 60A | 60A | 100A |
| Maximum Charge Current | 80A | 100A | |||
| MECHANICAL SPECIFICATIONS | |||||
| Machine Dimension (W*H*D)(mm) | 290*367*111 | 290*367*111 | 290*367*111 | 318*367*122.5 | 318*454*122.5 |
| Package Dimension (W*H*D)(mm) | 446*394*187 | 446*394*187 | 446*394*187 | 459*410*200 | 544.5*410*200 |
| N.W (kg) | 6.4 | 6.6 | 6.6 | 7.2 | 9.0 |
| G.W (kg) | 7.4 | 7.6 | 7.6 | 8.2 | 10.5 |
| OTHER | |||||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | ||||
| Operating Temperature | 0°C~50°C | ||||
| Storage Temperature | -15°C~60°C | ||||
| Warranty | 2years | ||||
| CERTIFICATION & STANDARDS | |||||
| CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) | |||||
