Must Inverter High Frequency Off Grid Solar Inverter MPPT 45A

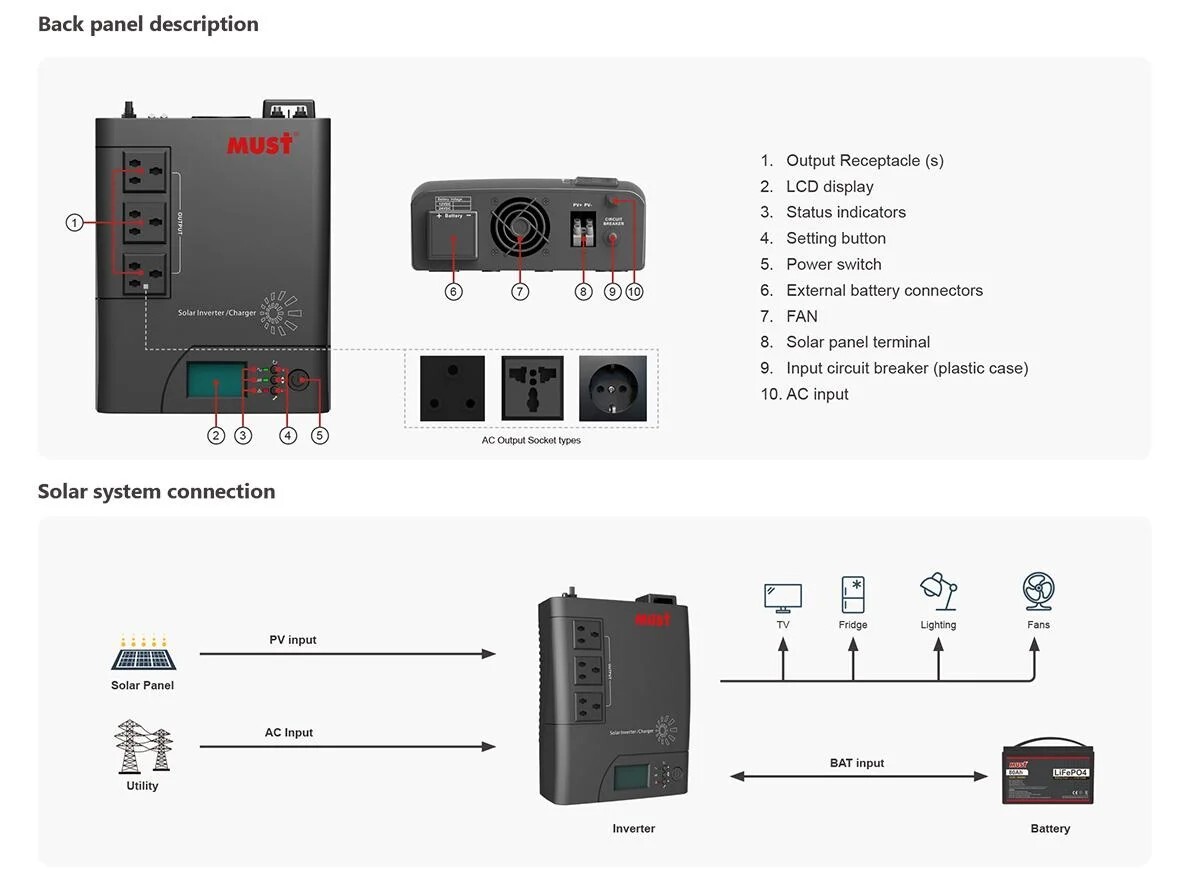

It is a cost effective, intelligent solar inverter which accepts Solar & Utility input at the same time. The comprehensive LCD display offers userconfigurable and easy-accessible button adjustment such as battery charging current, AC/solar charger priority and DC priority.When battery voltage is low,it will automatically switch to AC grid to supply continuous power to the loads.
Message
| MODEL | PV15-1012 | PV15-1512 | PV15-2024 | |||
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | |||
| NVERTER OUTPUT | ||||||
| Rated Power | 1000VA / 600W | 1500VA/ 1000W | 2000VA / 1200W | |||
| Waveform | Pure Sine Wave | |||||
| Nominal Output Voltage RMS | 230V | |||||
| Output Voltage Regulation | +10/-18% | |||||
| Output Frequency | 50Hz / 60Hz ± 1Hz | |||||
| Inverter Efficiency (Peak) | >90% | |||||
| Line Mode Efficiency | >95% | |||||
| Typical Transfer Time | Typical < 10ms , 20ms max | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Voltage Range | 170~280VAC (UPS) / 90~280VAC (APL) / 184~258VAC (VDE) | |||||
| Frequency Range | 50Hz/ 60Hz (auto sensing) | |||||
| BATTERY | ||||||
| Note: Below Parameters (PB) Lead-acid Battery / (LI) LiFePO4 Lithium Battery Pack – 12V(4 Series) 24V(8 Series) | ||||||
| Nominal Input Voltage | 12VDC | 12VDC | 24VDC | |||
| Low Battery Cutoff | 10.5VDC(PB) | 11.5VDC(LI) | 10.5VDC(PB) | 11.5VDC(LI) | 21.0VDC(PB) | 23.0VDC(LI) |
| Low Battery Alarm | 11.0VDC(PB) | 12.0VDC(LI) | 11.0VDC(PB) | 12.0VDC(LI) | 22.0VDC(PB) | 24.0VDC(LI) |
| Low Battery Voltage Recover | 12.5VDC(PB) | 12.8VDC(LI) | 12.5VDC(PB) | 12.8VDC(LI) | 25.0VDC(PB) | 25.6VDC(LI) |
| High Battery Voltage Recover | 14.5VDC(PB) | 14.5VDC(LI) | 14.5VDC(PB) | 14.5VDC(LI) | 29.0VDC(PB) | 29.0VDC(LI) |
| High Battery Voltage Cutoff | 15.0VDC(PB) | 15.0VDC(LI) | 15.0VDC(PB) | 15.0VDC(LI) | 30.0VDC(PB) | 30.0VDC(LI) |
| SOLAR CHARGER & AC CHARGER | ||||||
| Charger Voltage boost | 14.4VDC(PB) | 14.4VDC(LI) | 14.4VDC(PB) | 14.4VDC(LI) | 28.8VDC(PB) | 28.8VDC(LI) |
| Charger Voltage float | 13.8VDC(PB) | 14.4VDC(LI) | 13.8VDC(PB) | 14.4VDC(LI) | 27.6VDC(PB) | 28.8VDC(LI) |
| Maximum PV Charge Current | 45A (max) | |||||
| Maximum PV Array Power | 600W | 600W | 1200W | |||
| MPPT Operating Voltage Range | 14 ~ 75VDC | 14 ~ 75VDC | 28 ~ 75VDC | |||
| Maximum PV Array Open Voltage | 105V | |||||
| Maximum Efficiency | > 95% | |||||
| AC Charging Current | 10A/20A (Can be set) | 10A/20A (Can be set) | 7A/15A (Can be set) | |||
| Maximum Charge Current AC+PV | 10~65A (Can be set) | 10~65A (Can be set) | 10~60A (Can be set) | |||
| BYPASS & PROTECTION | ||||||
| Overload Protection (SMPS Load) | FUSE | |||||
| Output Short Circuit Protection | FUSE | |||||
| Bypass Fuse Rating | 7A | 10A | 10A | |||
| Max Bypass Current | 7A | 10A | 10A | |||
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimension (W*H*D) | 235*290*92mm | 224*337*98mm | 235*290*92mm | |||
| Package Dimension (W*H*D) | 595*375*315mm | 300*410*178mm | 595*375*315mm | |||
| N.W (kg) | 2.8kg | 3.6kg | 3.0kg | |||
| G.W (kg) | 3.5kg | 4.3kg | 3.7kg | |||
| Material | Plastic case | Metal case | Plastic case | |||
| OTHER | ||||||
| Operation Temperature Range | 0℃ to 40℃ | |||||
| Audible Noise | 50dB MAX | |||||
| Display | LED+LCD | |||||
| CERTIFICATION & STANDARDS | ||||||
| CE | ||||||
