JA Solar JAM54D40MB

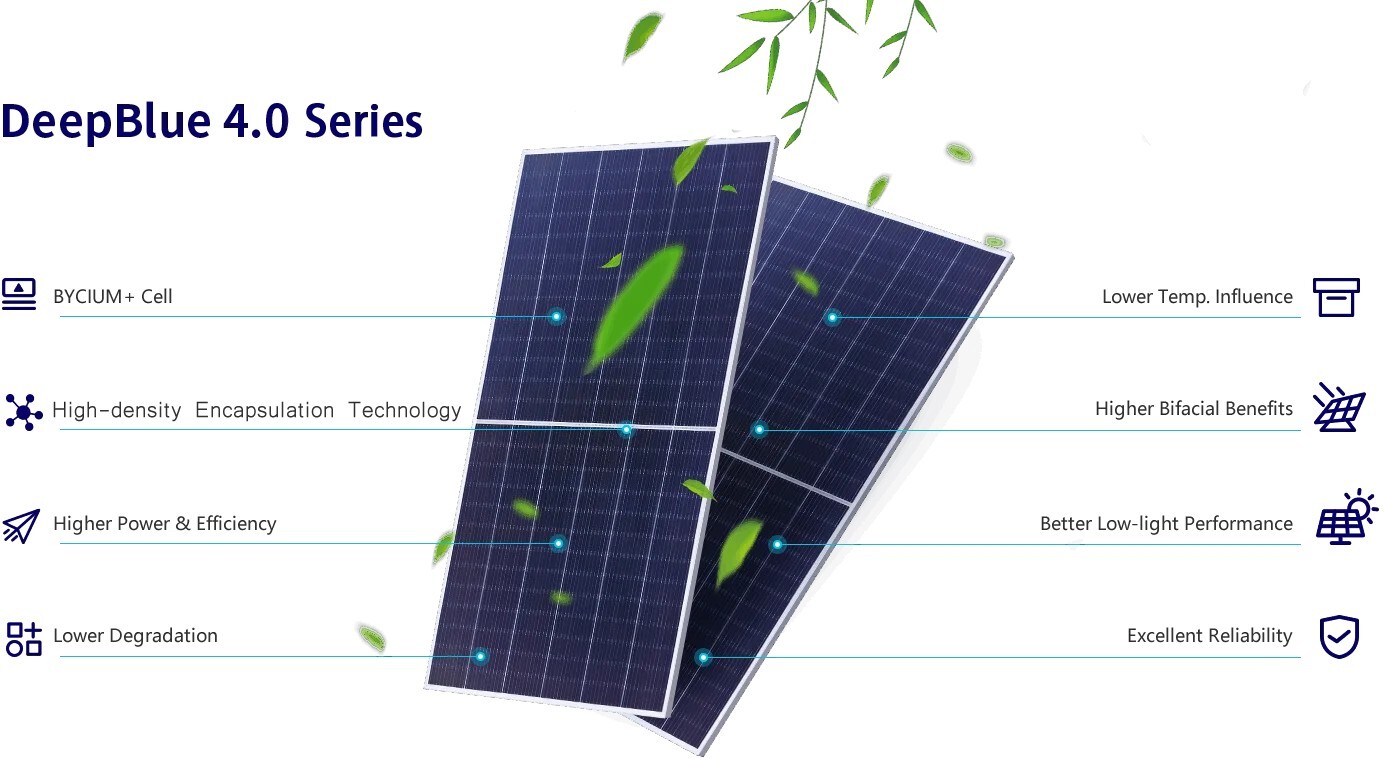

420W 425W 430W 435W 440W 445W JA Deepblue 4.0 Series n Type Double Glass Bifacial Modules, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.

Message

Previous:JA Solar JAM78D40MB

Next:JA Half Cell Module 580W 585W 590W 595W 600W 605W Deep Blue 3.0

Product Details

MECHANICAL DATA
Cell	Mono
Weight	21.5kg
Dimensions	1722±2mm1134±2mm30±1mm
Cable Cross Section Size	4mm²(IEC)，12 AWG(UL)
No. of cells	108(6*18)
J-Box	IP68, 3 diodes
Connector	QC 4.10-351/ MC4-EVO2A

ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]	420	425	430	435	440	445
Power Tolerance	0~+3%
Open Circuit Voltage(Voc) [V]	38.28	38.56	38.84	39.11	39.38	39.65
Maximum Power Voltage(Vmp) [V]	32.38	32.64	32.88	33.13	33.37	33.64
Short Circuit Current(lsc) [A]	13.65	13.7	13.75	13.8	13.85	13.9
Maximum Power Current(lmp) [A]	12.97	13.02	13.08	13.13	13.18	13.23
Module Efficiency[%]	21.50%	21.80%	22.00%	22.30%	22.50%	22.80%
